12G HD SDI Snake Cables
Cable Evolution Custom 12G HD SDI Snake Cables
Custom 12G HD SDI Snakes support a full HD signal up to 200ft long utilizing a 12G Mini RG59 Cable and a variety of HD SDI Connectors.
Cable Evolution custom 12G HD SDI snake series features 12G Rated Mini RG59 coax, High Definition coaxial elements that have the lowest attenuation of the miniature types exceed standards for uncompressed 12G HD video. Each coaxial element is constructed from a precision 23 gauge solid conductor, gas injected dielectric, and broadband foil and braid shield.
12G HD SDI coaxial cables are precisely stripped using our high speed rotary automatic stripper offering exacting stripping capabilities. The high speed stripper allows for precise adjustment capabilities for small variation that are common among coaxial cables.
Commonly used for high resolution 12G HD SDI video, the bandwidth and precision tolerances of the 12G Mini Coax also allows it to be used as a multi-channel HD/SDI video snake without the bulkiness of snake cables.

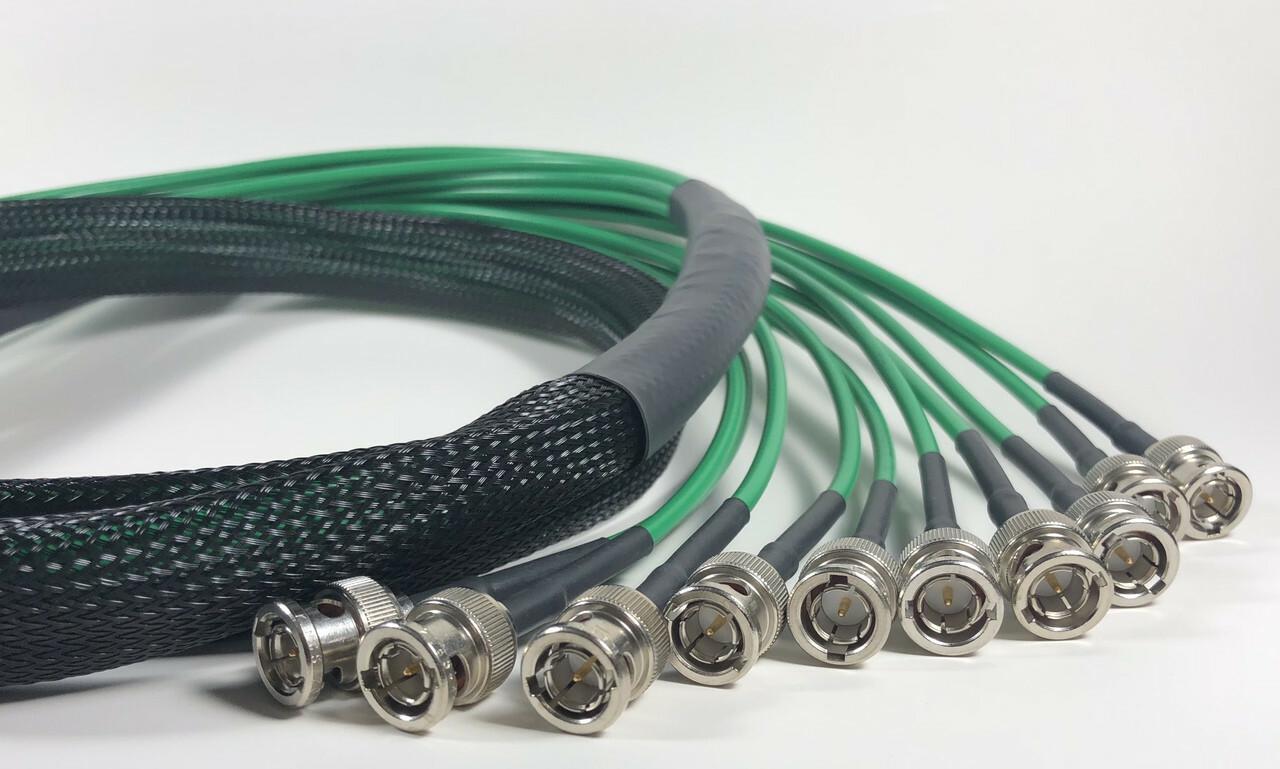

Our multi-channel snakes can be custom configured from 2 channels up to 20 channels to include HD SDI and Audio cables with various connector types. Lengths can range from 3ft up to 200ft.
Cables are bundled together with a nylon expandable sleeving that provides a lightweight and flexible solution.
- Belden 12G SDI Coax Cable with PVC Jacket in various colors
- 12G SDI Rated BNC, HD BNC or Din 1.0/2.3 Connectors
- Strain Relief boots INCLUDED with Heat Shrink
- Compatible with 12G SDI single link format devices
- Nominal Impedance: 75Ω
- Conductor: Silver Plated Copper
- Insulation: Gas Injected Foam HDPE
- Outer Shield: Duofoil bonded to the Core + Tinned Copper Braid Shield
- Conductor DC Resistance: 19.700 DCR@20°C(Ohm/1000ft)
- Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 310 feet
